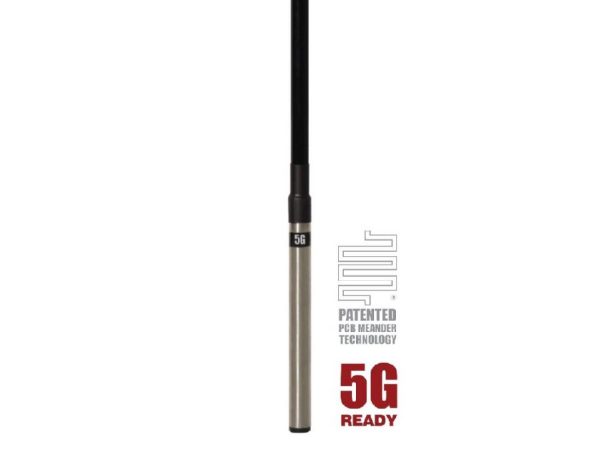

COL8195 5G LTE Cellular Antenna – 698-3800MHz

The new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).
They are ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements.
These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.


Nominal Gain dBi 6.5 @ 698-960MHz / 4.5 @ 1710-2170MHz / 5.5 @ 2300-2700MHz / 6.5 @ 3400-3800MHz
Frequency MHz 698-960, 1710-2170, 2300-2700, & 3400-3800
Tunable Bandwidth Full. No tuning required
VSWR <2.5:1
Polarisation Vertical
Vertical Beamwidth 25 / 30 / 20 / 15
Power W 10
Construction Black radome, 200mm S/S mounting tube
Length mm 965
Radome Diameter mm 15.6
Weight (kg) 0.572
Termination 10m RG58 (9006) low loss cable terminated with SMA male connector
Mounting Area 200mm x 19mm S/S, 2 x S/S hose clamps (supplied)
Wind Gust Rating km/h 240

Ordering Details

Product Code: COL8195

Please contact us for pricing and further details
