Digital WP2P Module – Single Unit

$385.00

The WP2P Slave Modules are used to build both the WP2P Star and Multi Point Controller networks.

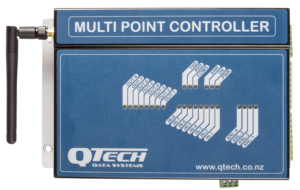

The Multi Point Controller allowing you to create a network of up to eight slave modules over a range of 4km.

Each of the WP2P Slave Modules has three switched inputs and three relay outputs. Now you can operate any of these I/O from the Multi Point Controller and even ‘patch’ the I/O to other WP2P Slave Modules.

The latest Rev E modules also have a configurable “failsafe” relay output hold function, link and status indicators.

The WP2P Star system is a custom configuration option based on the popular WP2P Digital system.

WP2P star system comprises up to four WP2P modules. One module is configured as a master, and the other three as slaves and maps the I/O between the modules.



The WP2P’s do not come with DC power supplies or DC power cables, please select the most suitable option for your application from our range of Accessories.

The price of this unit is for a single unit, please specify the required quantity.

Multi Point Controller configuration is by our class leading Workbench software and the I/O mapping is as simple as clicking the grid.

SKU: PD8810E Category: Tag:

Application Examples

These examples are just some of the many ways the WP2P systems can be used:

Wireless point to point WP2P Digital Application

Wireless point to point WP2P Digital Application





Specifications

  • Frequency 917MHz to 927MHz
  • RF Output 100mW
  • Digital Modulation technology
  • Dimensions L 112 x W 76 x D 26 mm
  • Enclosure Steel, powder coated
  • Power connector 2.1mm DC jack, centre positive
  • Supply Voltage 6 V—24 V DC (max 28 V DC)
  • Short circuit and reverse polarity protection
  • Current Consumption 6mA Typical
  • Weight Less than 350g

WP2P Star Systems Input Output mapping

Ordering Details

    • Product Code: PD8810-WP2PE (supplied as a Matching Pair)
    • Product Code: PD8810E (Slave Module) for star configuration or module replacement

NOTE: The radio code must be stated when purchasing for WP2P module replacement.

The WP2Ps do not come with DC power supplies or DC power cables, please select the most suitable option for your application.

Please refer to our website for further product information and optional accessories including a DIN rail mount option.

Product Downloads

User Guide – WP2P Digital

Datasheet – WP2P Digital

Application Note – WP2P Star Configuration Option

Application Note – WP2P Star Blast Option

Customer Feedback

Richard O. – “I installed a system;  2000 metres from tank to pump. It has been working well for 5 years now.”

Robert D. – “Perfect”

Warren S. – “Worked first go… All running nicely.” – Electrician who installed was extremely impressed and requested Datran Australia contact details.
