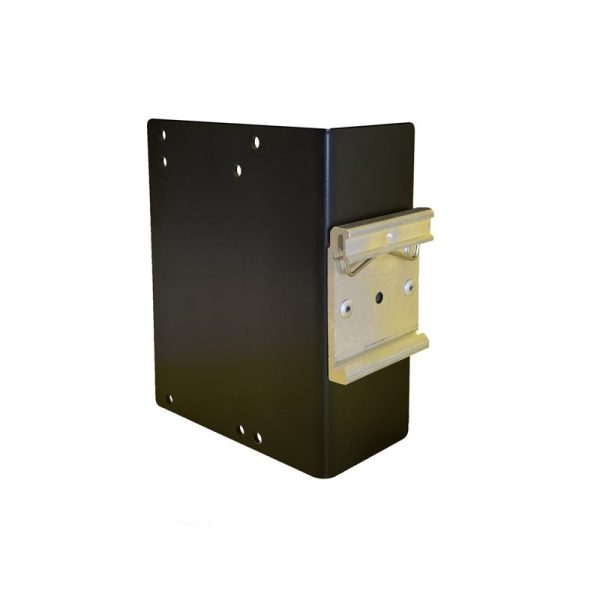

DIN Rail Mount

The DIN rail mount is suitable for all of the SMS Lite and Wireless Point to Point (WP2P) modules.

The mounting bracket provides easy DIN rail mounting options in switchboards or control panels.

The mounting bracket is made from 2mm mild steel with a powder coated finish and is supplied complete with an aluminium DIN rail clip.

Two sets of mounting holes are provided on the bracket to suit different QTech product ranges.

The DIN rail bracket mounts the SMS Lite WP2P module vertically to minimise the DIN rail space used.

The DIN rail mount is suitable for:

SMS Lite – part number PD8640-4G

WP2P Digital – part number PD8810E-WP2P

WP2P Analogue – part number PD8812E-WP2P-A

WP2P Slave (for MPC systems) – part number PD8810E

WP2P Repeater – part number PD8811E

All mounting holes are for 4mm fixings.

Please ask about our full range of antennas and accessories. for our wireless control solutions.

For more information on the DIN rail mount please contact our sales and support team.

Ordering Details

Product Code: PD8640-DIN-BRCKT

Product Downloads

Drawing – DIN Rail Mount
