Specifications
Frequency MHz 698 – 960 / 1710 – 2170 / 2300 – 2700
Tuned Bandwidth Full. No tuning required
VSWR 2.5:1
Nominal Gain [dBi] 2
Power [W] 50
Connector SMA (M)
Band 915MHz ISM
Whip Length mm 113mm (max.)
Antenna Type Omni
$15.00

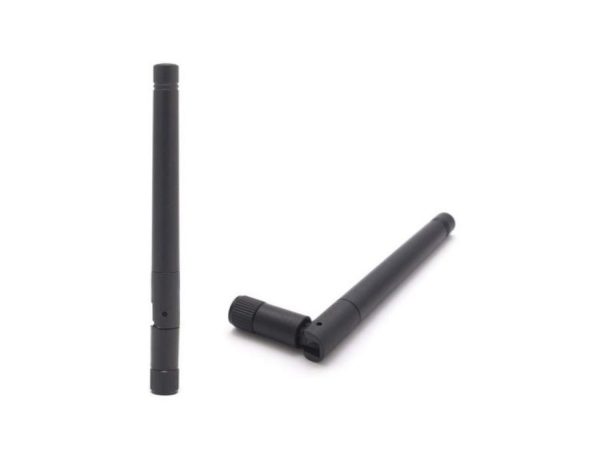

This antenna is supplied with many of our 900MHz radio products including the WP2P Digital, WP2P Analogue and the WRTU.
This part number allows you to purchase replacements or spares.
Ideally suited for short range indoor applications or for testing.
This antenna is not suitable for use with our high power Q48 P2P or MPC products.
Click here for higher gain and outdoor mounting alternatives.
Frequency MHz 698 – 960 / 1710 – 2170 / 2300 – 2700
Tuned Bandwidth Full. No tuning required
VSWR 2.5:1
Nominal Gain [dBi] 2
Power [W] 50
Connector SMA (M)
Band 915MHz ISM
Whip Length mm 113mm (max.)
Antenna Type Omni
