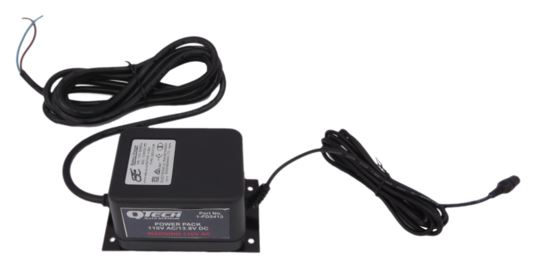

Power Pack – 110V AC Input – 13.8V DC Output

Indoor use only

This plug pack is recommended for use with our:

• Wireless Point to Point systems (all Digital, Analogue and Digital, Repeater modules
• SMS Controllers
• QDR Digital Radios
• Q48 P2P systems
• Multipoint Controller

(Mainly used with Centre Pivots with 110V AC supply)

Category: Tags: ,

Specifications

Specifications

Item                                                      Specification
Input Voltage                                          110V 50Hz
Input Cable                                             2 core x 0.75mm, 1.8m length
Output Rating Regulated                     13.8V DC at 250mA
Technology                                              Linear, transformer based Double insulated
Output Connector                                  2.1mm DC Plug, centre positive Input Cable
Output Cable                                           1.5m length
Dimensions                                             H 90mm x W x 65mm x D 69mm (excludes mounting plate)
Mounting                                                 4x M4 holes at 44x94mm centres

Ordering Details

  • Product Code: PD5413

Please refer to our website for further product information and optional accessories
