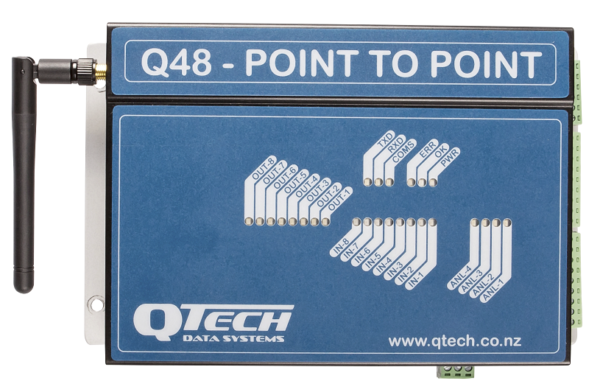

Q48 Point to Point (Q48-P2P)

The Q48 Point to Point (Q48-P2P) is a multiple input – multiple output wireless control system.
Each of the Q48-P2P modules has eight switched inputs, eight solid-state outputs, two 4-20mA inputs, and two 4-20mA outputs which allows you to transmit analogue and digital signals over a range of up to 4km.

8 Digital & 2 Analogue I/O, wireless remote control solution
The Q48-P2P system provides a remote control solution Monitoring up to eight digital switches and two analogue sensors. As well as controlling up to 8 digital relays and two analogue outputs per Q48 module.
Each Q48-P2P system comprises a pair of Q48 wireless modules that are preprogrammed with a unique common communication address, thus allowing for multiple Q48-P2P systems to be used within the same general location.

This system can be considered as a multicore cable replacement option, without the hassle of trenching and installation.

There is no configuration or setup required, simply connect the I/O and DC power and go.

Features

  • Inputs/Outputs: 8 Digital Inputs, 8 Digital Outputs, 2 Analogue Inputs, 2 Analogue Outputs
  • Simple set up, no programming or configuration required
  • Operational Range: Up to 350m with the supplied antennas, 6km with optional antennas (ranges are line of sight).
  • State of the art digital radio using 900MHz digital modulation technology
  • Power Supply – 12 – 30V DC

Application Examples

These are just some of the many ways the Q48-P2P systems can be used:

  • Dairy Farm Backing Gate Control
  • Irrigation System Control
  • Industrial I/O Expansion

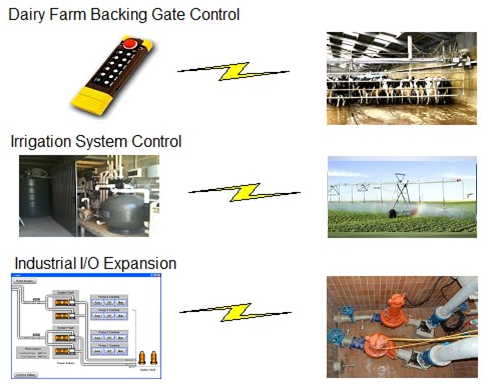

Q48-P2P APPLICATIONS

This is not an exhaustive list so please CONTACT US if there is a specific application you have in mind.

Specifications

  • Frequency 917MHz to 927MHz
  • RF Output Controller selectable to max. 250mW
  • Digital Modulation technology
  • Antenna connector SMA
  • Dimensions L 186 x W 120 x D 40 mm
  • Mounting Qty 4 x M4 holes at 177 x 84mm centres
  • Enclosure Steel, powder coated
  • Power connector 3 way screw terminal
  • Supply Voltage Controller 12 – 24V DC (max 30V DC)
  • Short circuit and reverse polarity protection
  • Current Consumption Controller 80mA nominal @12V DC

Inputs & Outputs

  • Qty 8x Switched Input (normally open, close to activate)
  • Qty 8x Outputs contact (solid state type)
  • Qty 2x Analogue Inputs (0-20mA)
  • Qty 2x Analogue Outputs (0-20mA)
  • Total switching current 1.9 Amps, 2A fused

Performance

  • Indoor/Urban line of sight up to 350m with supplied stub antenna
  • Outdoor line of sight over 4km with optional antennas
  • Data Rate 9600bps
  • Receiver sensitivity -110dBm

Ordering Details

    • Product Code: PD8630-P2P (Supplied as a Matched Pair)

    Note: Antennas and power supplies are supplied separately.

    All QTech products may be subject to delivery advice when ordered.

Please refer to our website for further product information and optional accessories.
