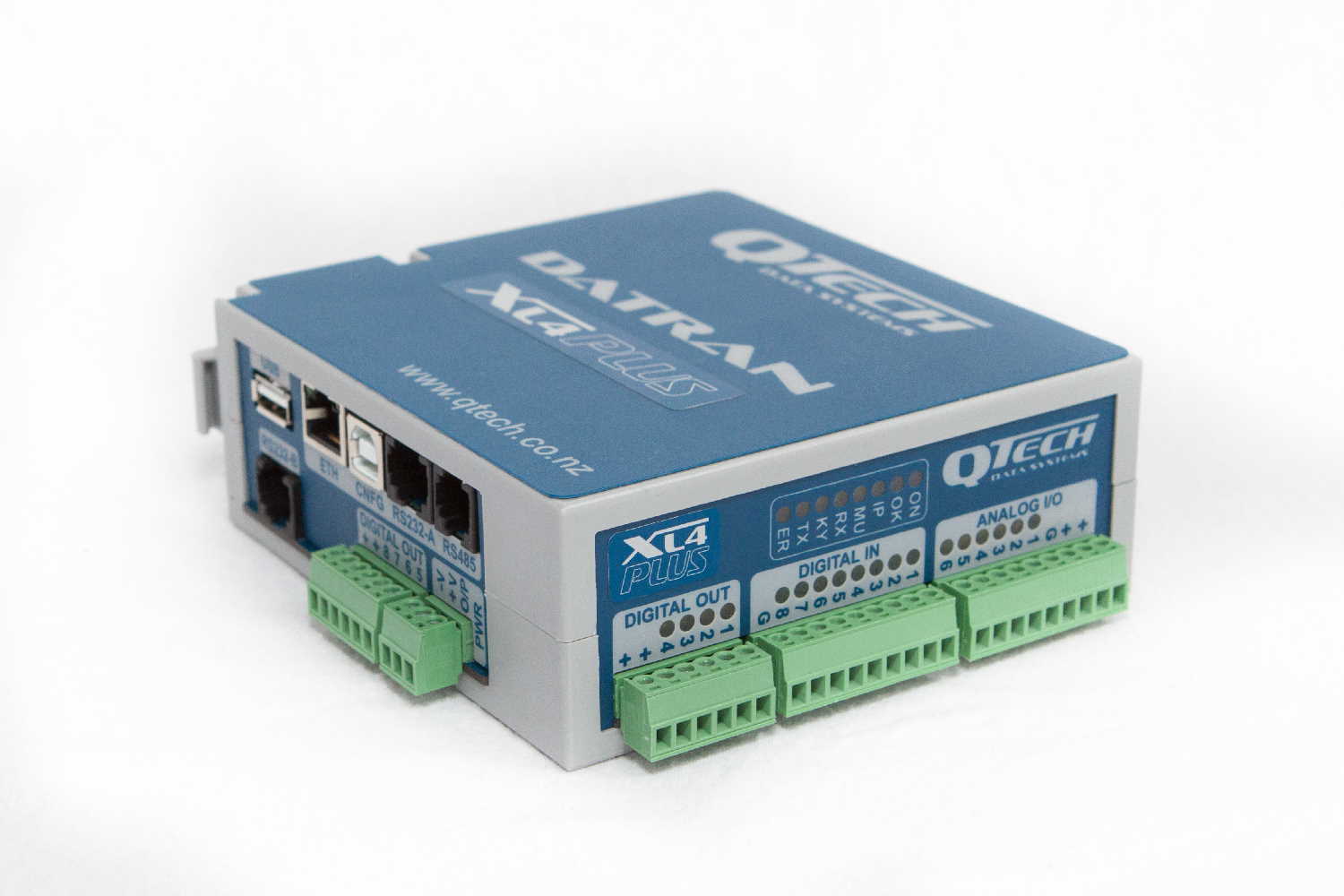

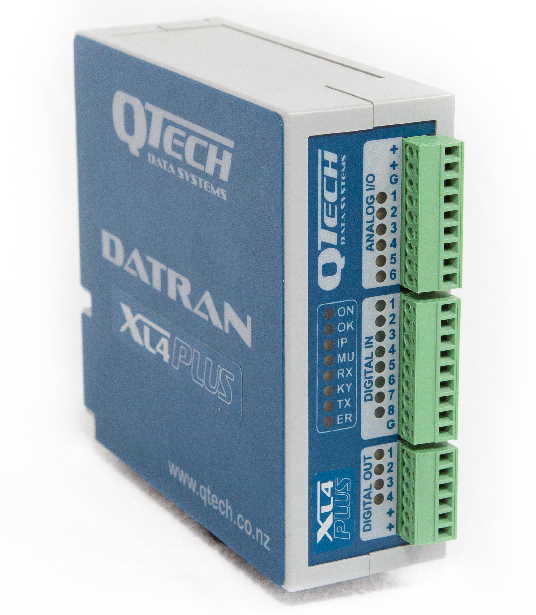

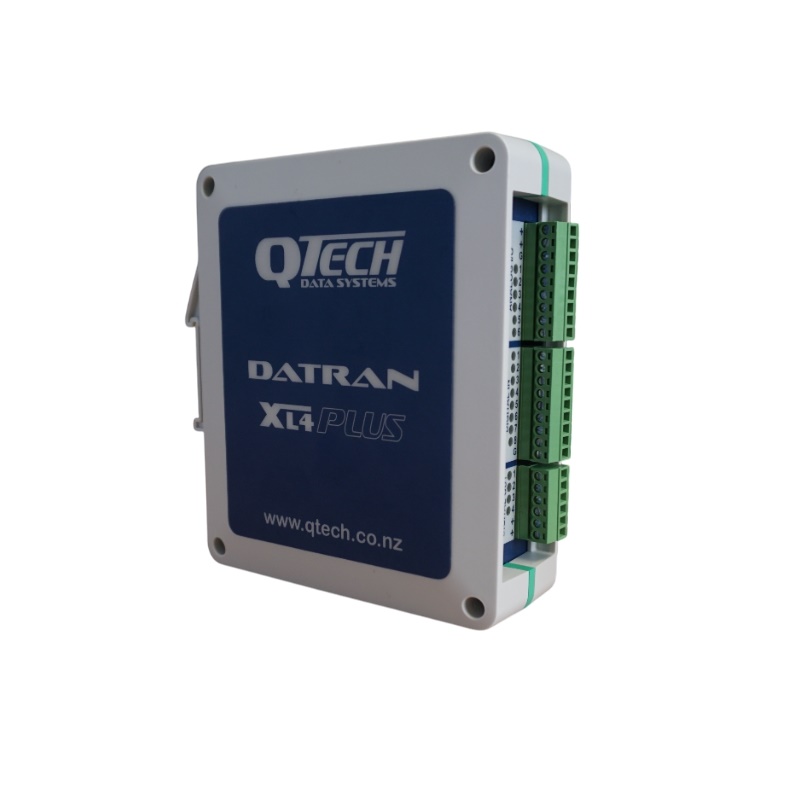

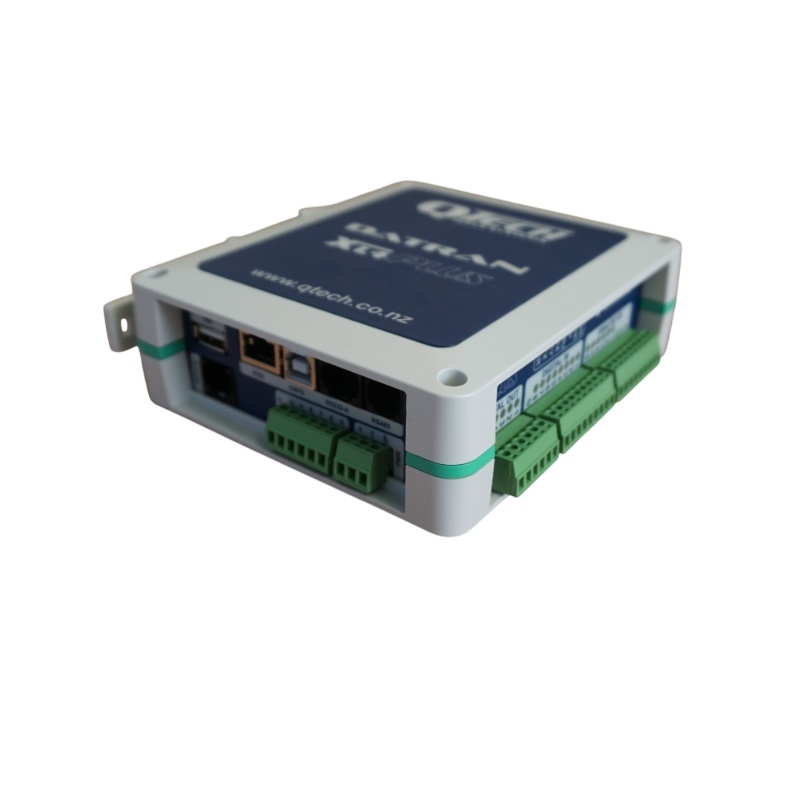

DATRAN XL4 PLUS RTU

The DATRAN XL4 Plus RTU is based on our fully redesigned industrial grade real-time operating system (RTOS).

Supporting over 65,000 data points, the XL4 Plus RTU is ideally placed to provide telemetry and control for Modbus or AB- DF1 PLCs, industrial equipment supporting Modbus, and many other sensors and actuators.

  • Powerful Q04 Plus processor running an industrial grade real-time operating system
  • Access over 65,000 data points ensuring all data is captured from PLCs and other devices
  • Supports multiple instances of Modbus RTU/ASCII/TCP and Allen Bradley DF1 industrial protocols on separate ports
  • Modbus and AB-DF1 protocols plus RTU to RTU Store & Forward included as standard
  • Base station communications via digital and analogue radio, Ethernet, cellular and store & forward
  • Redundant base station communications with simultaneous radio and Ethernet communications
  • USB configuration with QTech Workbench configuration utility
  • Fully backwards compatible with existing DLPs

The XL4 Plus RTU is backed up with our new revision of QTech Workbench configuration utility, DLP IDE and DATRAN VI SCADA System. The XL4 Plus RTU has more memory, has enriched features thanks to the new Q04 Plus firmware and is a drop-in replacement for the XL4 RTU.

Category: Tag:

Application Examples

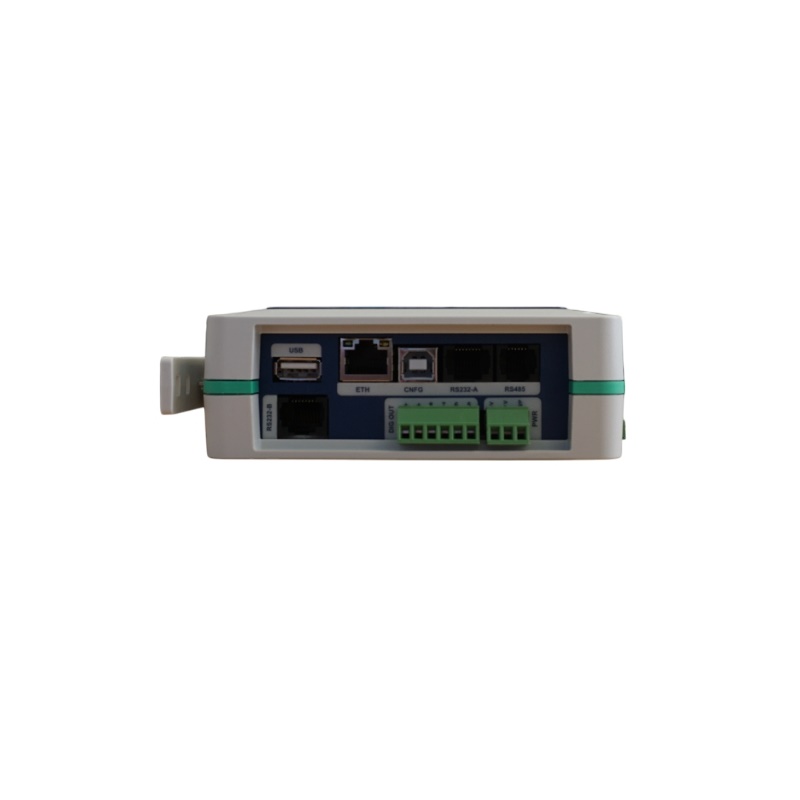

Connections

  • 10/100 Cat 5 Ethernet, 1.5kV isolation
  • RS-232 – 2 x RJ45 with flow control
  • RS-485 – 1 x RJ12 with 2.5kV isolation
  • USB Type B – For diagnostics and configuration
  • USB Host – For future development



Ordering Details

Product Code: PD7402

Please refer to our website for further product information and optional accessories.

Product Downloads

DATRAN XL4 Plus RTU

DATRAN XL4 Plus RTU Quick Start Guide

DATRAN XL4 Plus User Guide

DATAN XL4 Plus Mechanical Drawing

Please also refer to the application note section for specific configuration aspects.
