Digital & Analogue Wireless Point to Point System

LOW COST WIRELESS DIGITAL AND ANALOGUE SIGNAL TRANSMISSION

The Digital and Analogue WP2P system is a wireless solution used to measure levels, pressure or flow sensors, without needing to trench a cable.

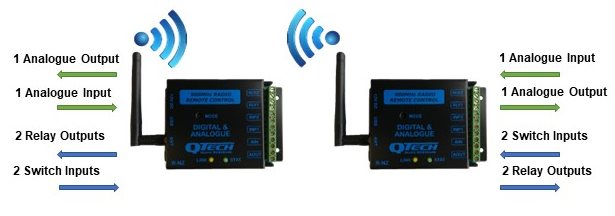

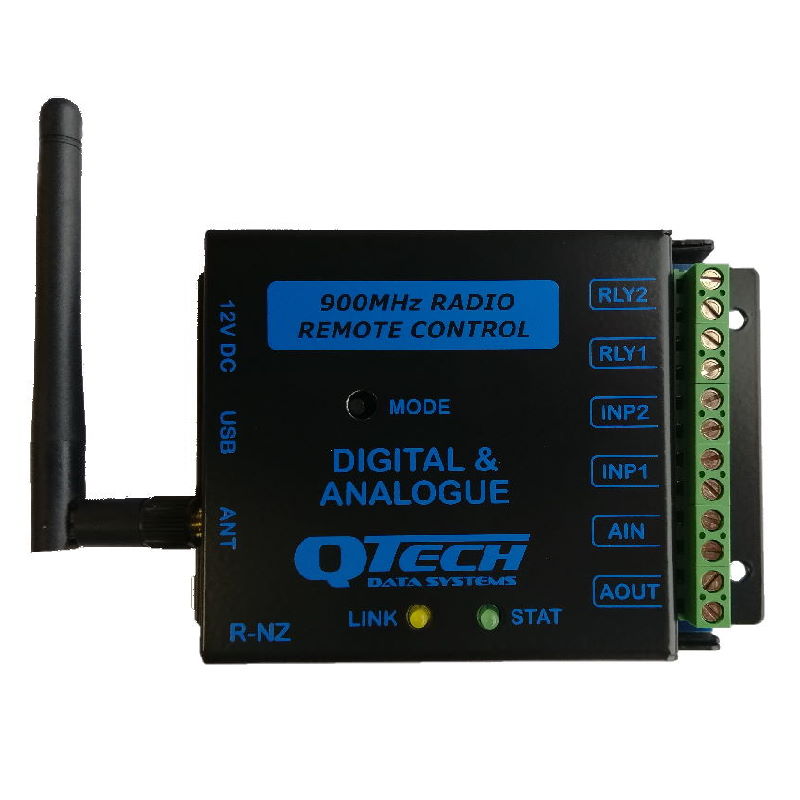

The system comprises two digital and analogue wireless point to point modules that are located within line of sight of each other. Each unit has one 0-20mA or 0-10v input, one 0-20mA or 0-10v output, two switched
inputs and two relay outputs, which allows you to transmit an analogue sensor reading and two digital signals.
For example you can measure a water storage level or provide a control signal for a VSD, while also turning pumps on or off and receiving alerts for faults.
No configuration or programming is required, simply connect the power, and go!

  KEY FEATURES

• USB interface for on-site firmware upgrades
• Isolated I/O interface section for improved power saving operation
• “Failsafe” output hold feature during communications failure
• Line of sight operational range up to 350m with supplied antennas, 2km with our optional whip antennas, or 4km with our optional Yagi antennas
• 900MHz Digital Modulation radios for added security
• “Link status” LED provides confirmation that the modules are communicating

Note: For these radio systems to work they must have clear “line of sight” between the modules. Depending on the terrain and the antennas being used, the WP2P system can transmit up to four kilometres. Where there are obstacles, hilly terrain or to increase the range, QTech’s WP2P Repeater module can be used to provide a reliable communications path.

We also provide a range of suitable Solar power supplies and DC power supplies.

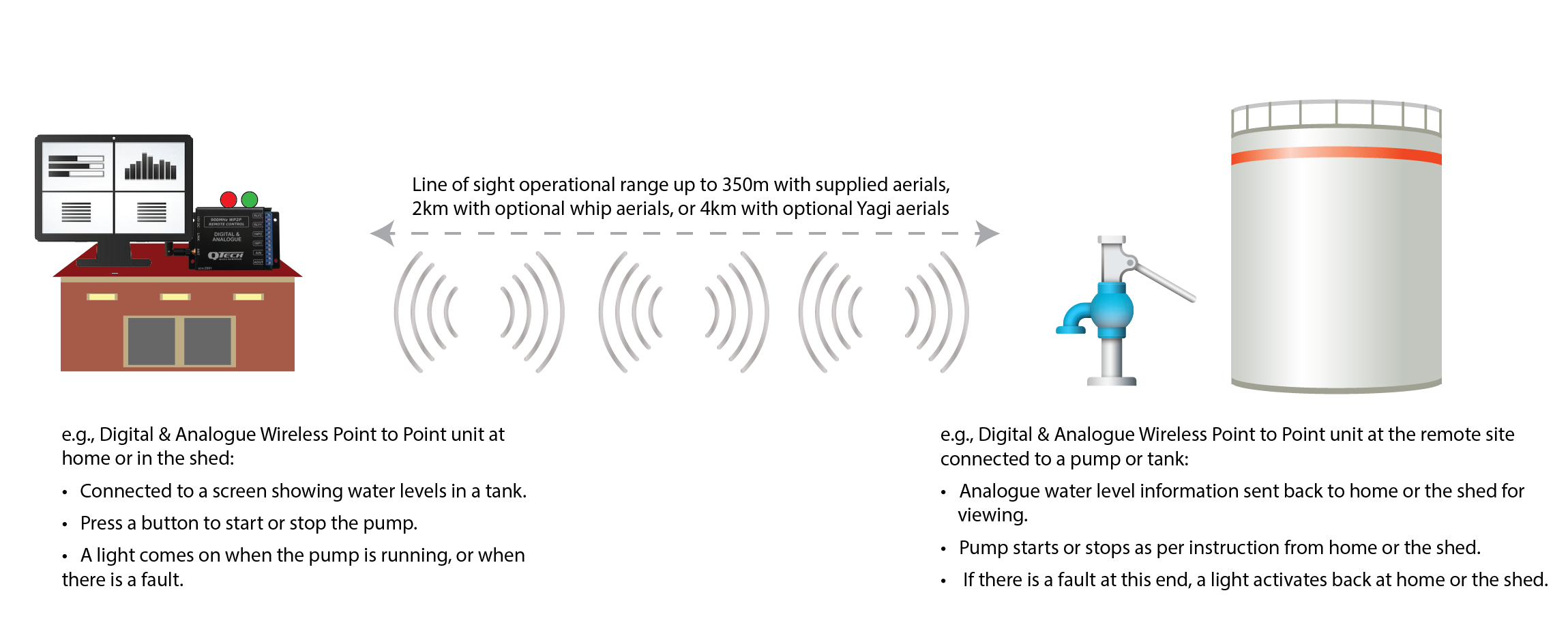

Application Examples

Need to use the WP2P to switch high current, high voltage?

This is achieved by using interface relays, outlined in this FAQ.



Specifications

  • USB interface for on-site firmware upgrades
  • Isolated I/O interface section for improved power saving operation
  • Failsafe output hold feature during communications failure
  • Line of sight operational range up to 350m with supplied antennas, 2km with optional whip
    antennas, or 4km with optional Yagi antennas
  • 900MHz Digital Modulation radios for added security
  • Enclosure Steel, powder coated
  • Power connector 2.1mm DC jack, centre positive
  • “Link status” LED provides confirmation that the modules are communicating

Radio Network Options

  •  20 channels
    Radio Code: For security a six digit code is assigned to all devices.All modules in a system require the same code to operate
Six (6) frequency bands allow six (6) separate systems to
be

Ordering Details

  • Product Code: PD8812E-WP2P-A (Supplied as a Matching Pair)

Unfortunately, this product is currently unavailable due to international component shortages.

Thank you for your patience, we will update this announcement when we are able to resume supply.

Please refer to our website for more information on:

Suitable power supplies

Optional antennas

Product Downloads

Datasheet – WP2P Digital & Analogue

User Guide – WP2P Digital & Analogue

Overview – QTech’s Wireless Remote Control Systems
