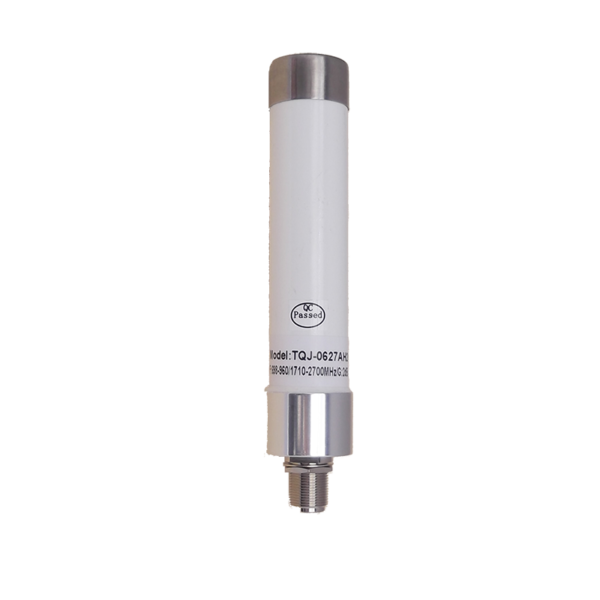

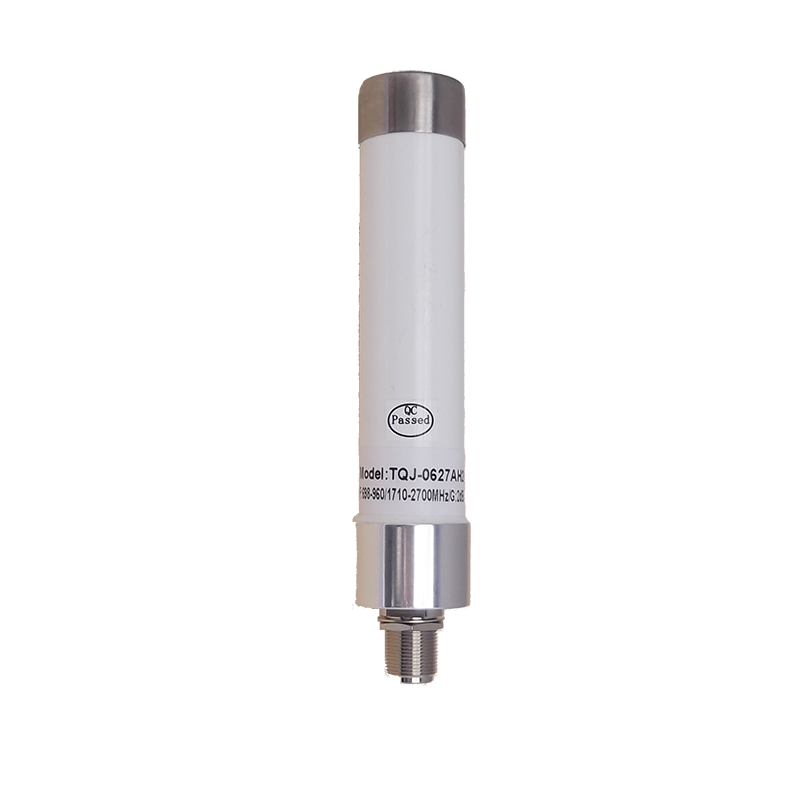

PD9243 Multiband 2dBi Cellular Vertical Fiberglass Whip

Omni-directional whip antenna suitable for use on 4G and 3G networks .

Category: Tags: ,


Frequency Range 698-960/1710-2700MHz
Bandwidth 262/990MHz
Gain 2dBi
Vertical Beam width 7 Degrees
VSWR ≤1.5
Nominal Impedance 50 Ohms
Polarization Vertical
Maximum Power 100 Watts
Diameter 0.032m
Length 0.16m
Weight 0.5kg
Operating temperatures -30 to +60 degrees C
Rated Wind Velocity 60m/s

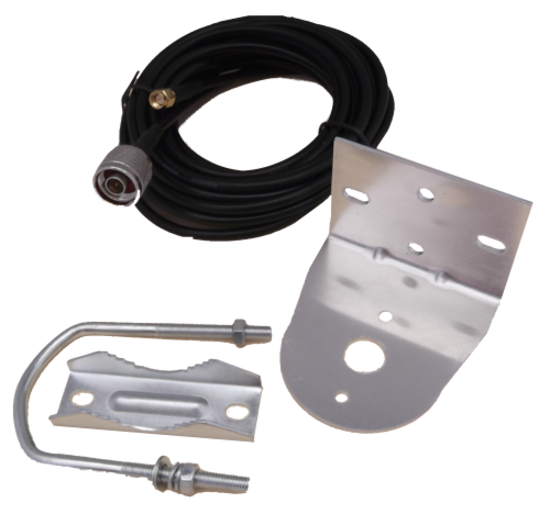

Supplied with mounting bracket, N Type to SMA Patch cable and 5m of coax

Ordering Details

Product Code: PD9243

Please contact us for pricing and further details

or click here for our full range of antennas
